General 15, 17,19 straight, 19 wide, 20 "wide, 22", 24 "LED strip

LCD retrofit LED backlight kit

New display LED kit

Advantage 1: The use of new original lamp beads, pure color temperature;

Advantage 2: New LED crossflow booster board, support 10-30V wide voltage input;

Advantage: 3 pieces 1 group, can be free to cut! 15-24 inch universal all-rounder;

Advantage 4: Adjustable brightness! (Many products of the same price on the Internet, in fact, do not have dimming functions)

[Transverse flow plate specification] 7cm*2cm (length * width) constant flow plate, also known as pressure reduction plate

Input voltage: 10V~30V wide voltage

[Light strip specification] : 27 inches =620mm*4mm*2mm (length * width * height)

23.6 inches =533mm*3mm*2mm (length * width * height)

24 inches =535mm*4mm*2mm (length * width * height)

22 inches =488mm*3mm*2mm (length * width * height)

20 "width =445mm*3mm*2mm (length * width * height)

19 "width =417mm*3mm*2mm (length * width * height)

19 inches =388mm*3mm*2mm (length * width * height)

17 inches =350mm*3mm*2mm (length * width * height)

15 inches =315mm*3mm*2mm (length * width * height)

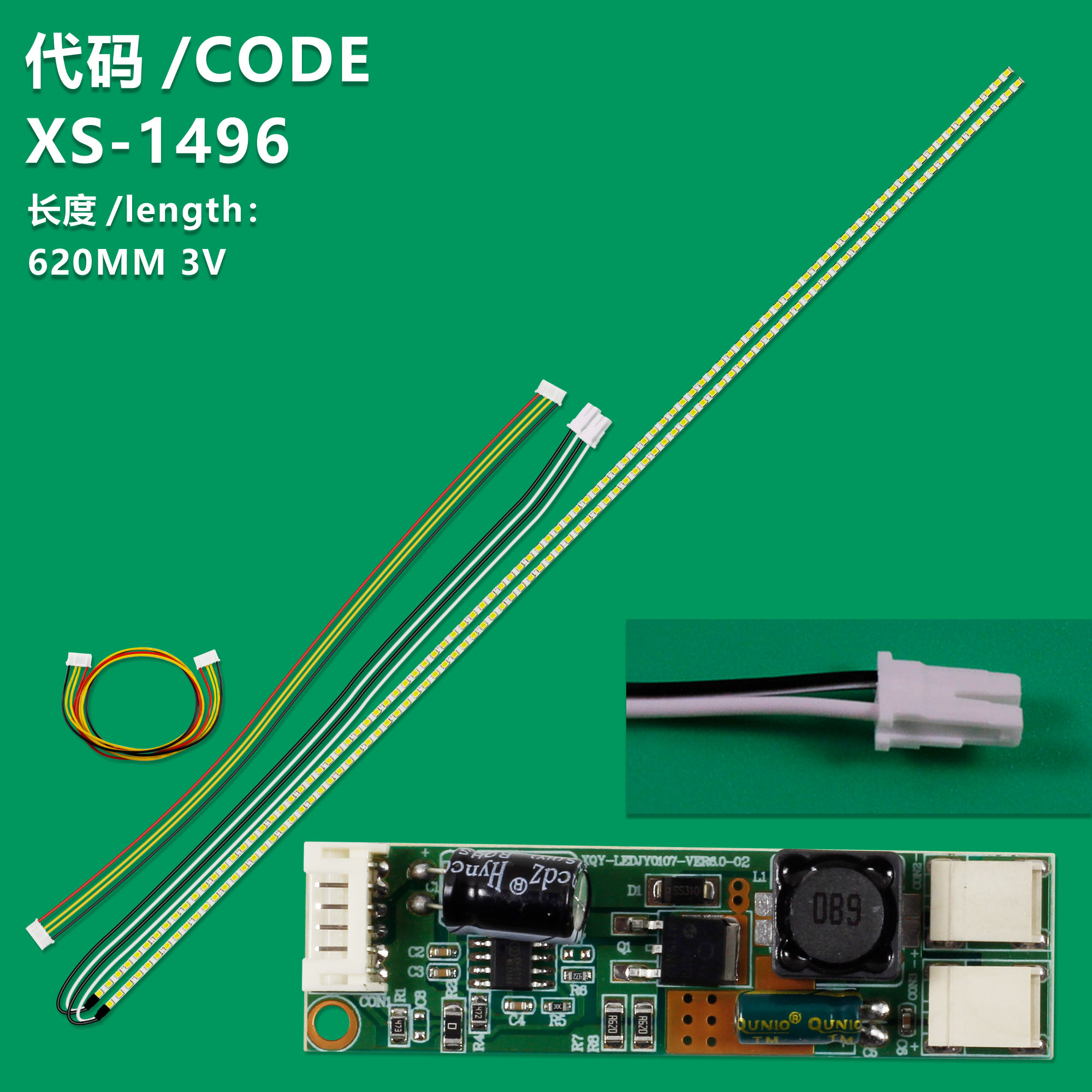

[Accessory list] : LED light strip *2 + constant current plate + connecting cable

【 Why say universal type? 】 This lamp strip is a group of 3 lamp beads, which can be cut according to actual requirements, such as 19 widescreen we commonly use about 420mm, then we only need to cut to the right length according to the law of 3 1 group, which is very convenient!!

Can be modified for most liquid crystal display on the market, the width can be placed in the original LCD slot (general screen slot thickness has two kinds, one is 7mm, one is 9mm thickness, this model can be installed), the use of double-sided tape fixed, easy to install, high brightness, easy to modify,

(In simple terms, LCD modified LED, is to replace the original LCD lamp and high pressure plate with LED lamp strip + constant current plate)

(Many friends ask, how to know which lamp strip should be replaced, here it is simple, 1: check the length of the lamp strip, the length of the lamp strip is equal to the length of the original lamp tube, 2: check the input voltage of the constant current plate is 10-19V, this voltage is equal to the input voltage of the original high voltage plate)

How to modify it? This set of how to modify, in fact, very simple, this set directly inserted into the drive board can be, equivalent to directly replace the original (high voltage bar + lamp), the original high voltage bar how to insert, how to connect this set of good ~~, remember the constant current plate interface definition, according to the definition and the drive board docking can)

Note: Please have a certain hands-on ability, have the spirit of exploration, have basic circuit knowledge of friends, although the installation and modification is not complicated, but we can not give you one by one to answer such questions as what is the high voltage bar, can not support online to solve all your installation problems, do not understand the friends please be careful.

【 Product Features 】 :

1, this product is the original display special light strip, high brightness, can not be looked at

3, LED particles tight, high-density arrangement of imported high-light LED patches

4, long life, designed for display, its life of up to 100,000 hours

5, easy to install, the use of double-sided tape can be affixed to the original LCD slot of the display, or affixed elsewhere

6, energy saving, power is only 8W. The original 4 LCD power is generally 24W.

Modified LED backlight advantages:

(1) The brightness of the ordinary lamp backlight is very dark when it is just turned on, and the brightness of the lamp can be normal after the lamp is completely preheated, and the LED backlight strip is turned on and the normal brightness does not need to wait.

(2) The ordinary lamp backlight does not consume energy, and the LED backlight is both energy saving and environmental protection.

(3) And the life is more than three times that of the ordinary lamp backlight, there is no need to change the backlight for a lifetime, and an investment will benefit for life.

For this reason, the store is now launching a LED backlight suitable for DIY modification.
